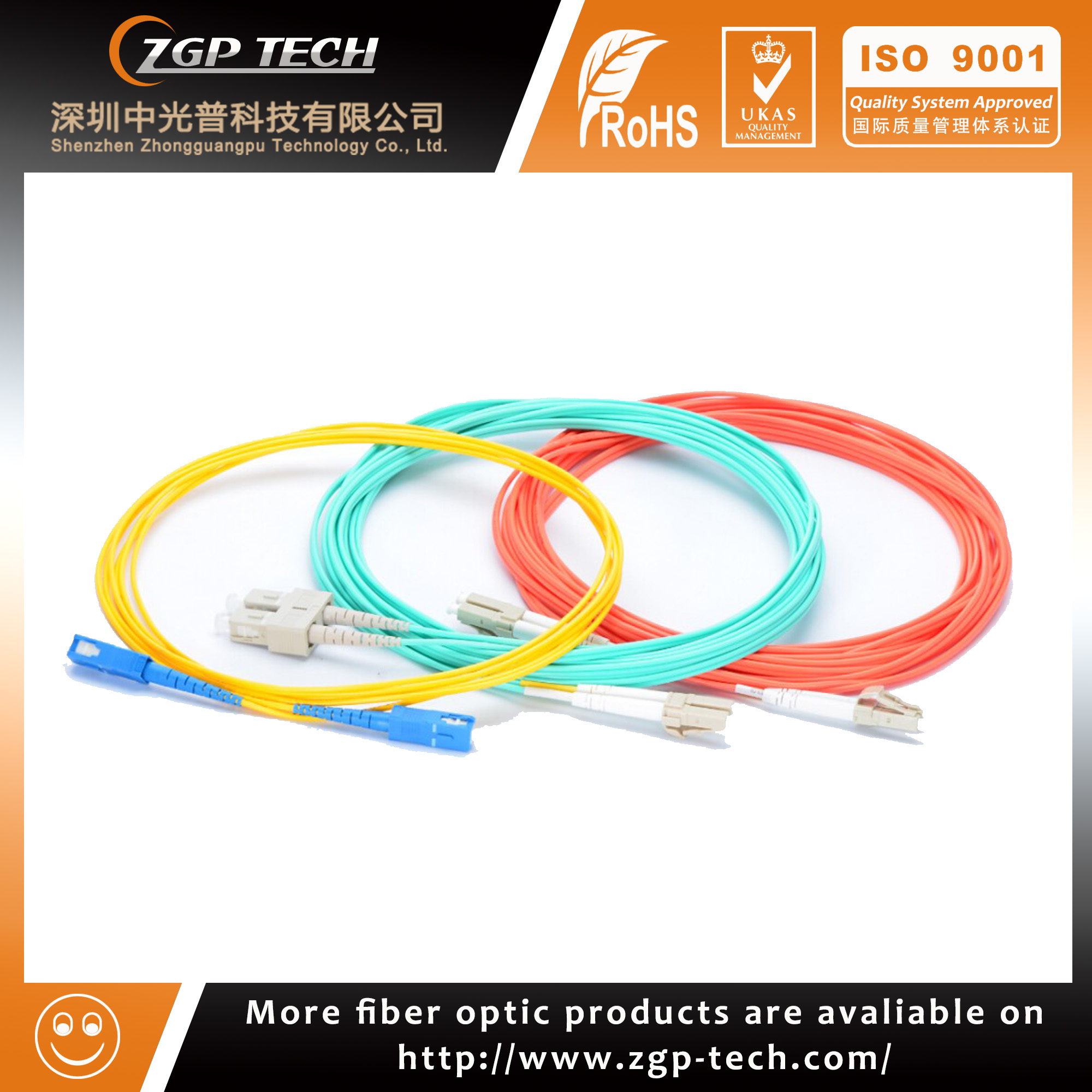

PVC LSZH 10m FC/UPC to FC/UPC SM simplex G652D 2.0/3.0mm Optical fiber pigtail patch cord

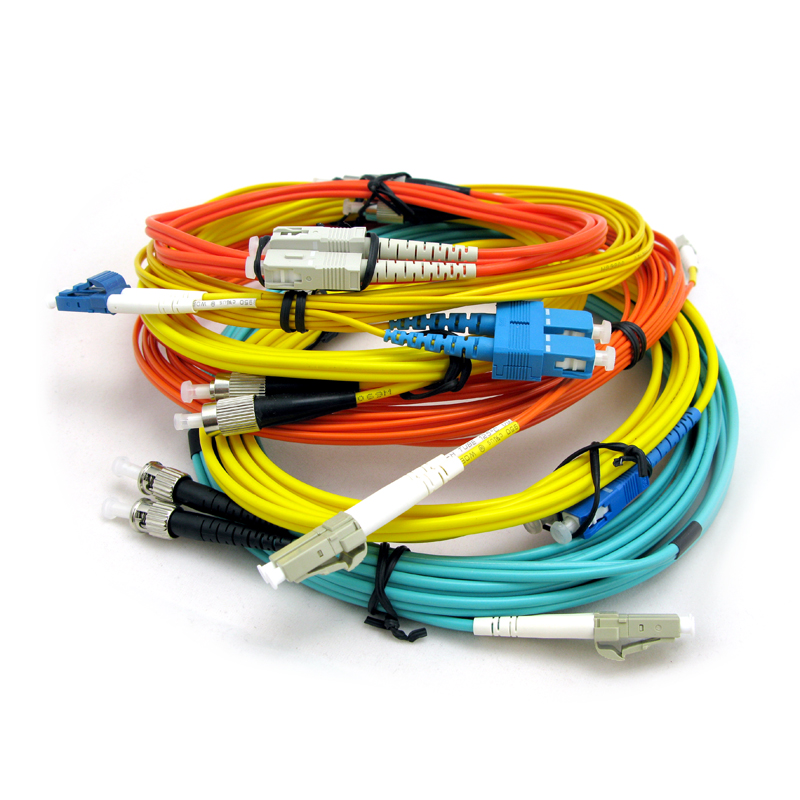

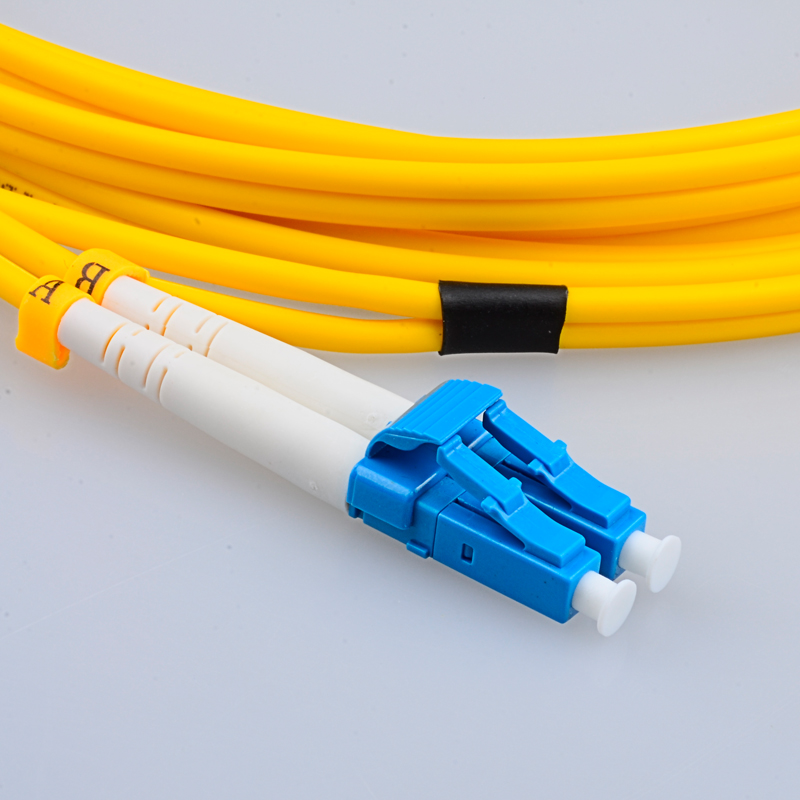

LC stands for Lucent Connector. It is a small form-factor fiber optic connector,half the size of the SC.
SC stands for Subscriber Connector- a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and is keyed.
ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.
FC stands for Fixed Connection. It is fixed by way of a threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.
Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Specification:
Parameter |
Unit |
FC, SC, LC |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
Operating temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
Storage temperature |
℃ |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
Cable diameter |
mm |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
Ordering Information:
LC/ UPC–LC/ UPC-SM- DX-Φ3.0–PVC-2M
① ② ① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP
⑦ Cable Length: 1, 2, 3 meter or customized
Connector Type | ST.LC SC.FC | Polish Type | UPC to UPC |
Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
Fiber Grade | G.657.A1 (Compatible with G.652.D) | Minimum Bend Radius | 10mm |
Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
Fiber Count | Duplex | Cable Diameter | 2.0mm |
Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
Operating Temperature | -20~80°C | Storage Temperature | -40~80°C |
FS has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
