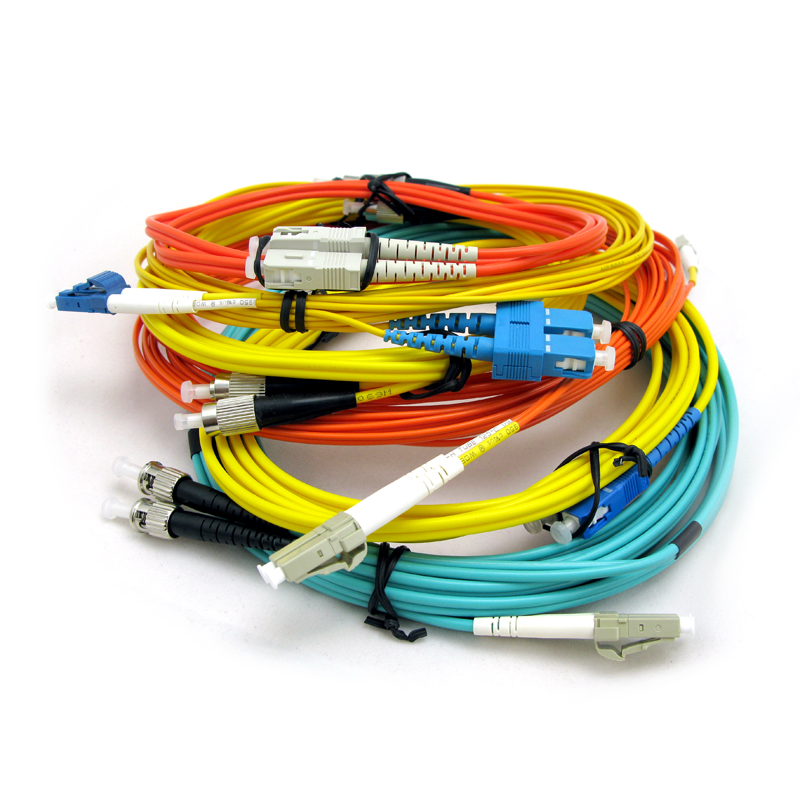

Optical Fiber Patchcord

FC/UPC to FC/LC/ST/SC SM simplex G652D 2.0/3.0mm Optical fiber pigtail patch cord PVC LSZH

FC/UPC to FC/LC/ST/SC SM simplex G652D 2.0/3.0mm Optical fiber pigtail patch cord PVC LSZH

SC,FC,LC,ST
pvc/LSZH
Bend Insensitive
Zirconia Ceramic Ferrule
Product description: FC/UPC to FC/LC/ST/SC SM simplex G652D 2.0/3.0mm Optical fiber pigtail patch cord PVC LSZH
INQUIRY

FC/UPC to FC/LC/ST/SC SM simplex G652D 2.0/3.0mm Optical fiber pigtail patch cord PVC LSZH

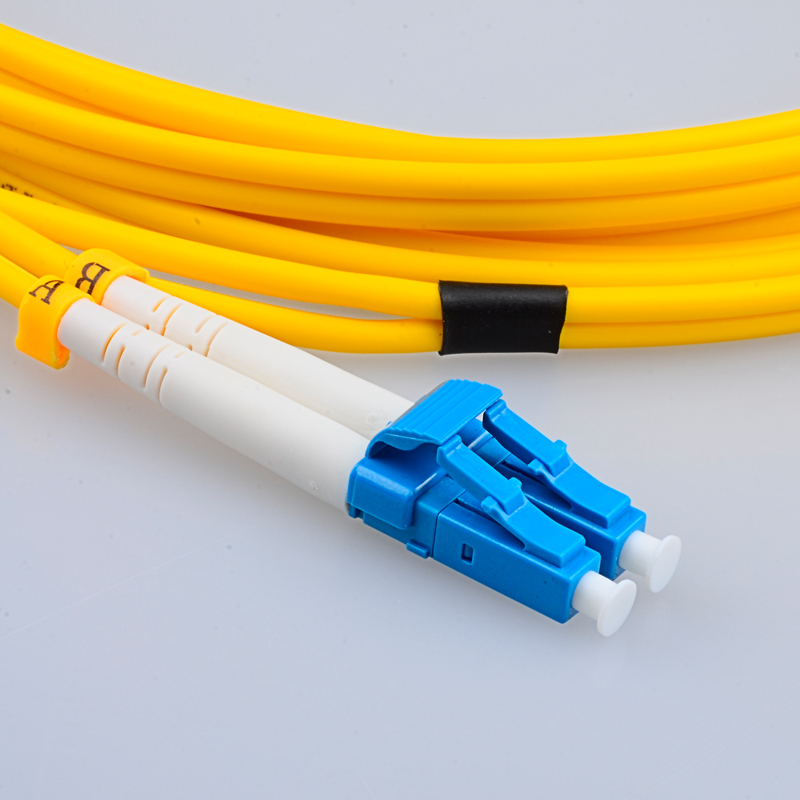

LC stands for Lucent Connector. It is a small form-factor fiber optic connector，half the size of the SC.

SC stands for Subscriber Connector- a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and is keyed.

ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.

FC stands for Fixed Connection. It is fixed by way of a threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.

Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specification:

Parameter

Unit

FC, SC, LC

ST, MU

MT-RJ, MPO

E2000

UPC

APC

UPC

APC

Insertion loss(typical)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

1310, 1510

Exchangeability

≤0.2

Vibration

≤0.2

Operating temperature

℃

-40~75

Storage temperature

℃

-45~85

Cable diameter

φ3.0, φ2.0, φ0.9

Ordering Information:

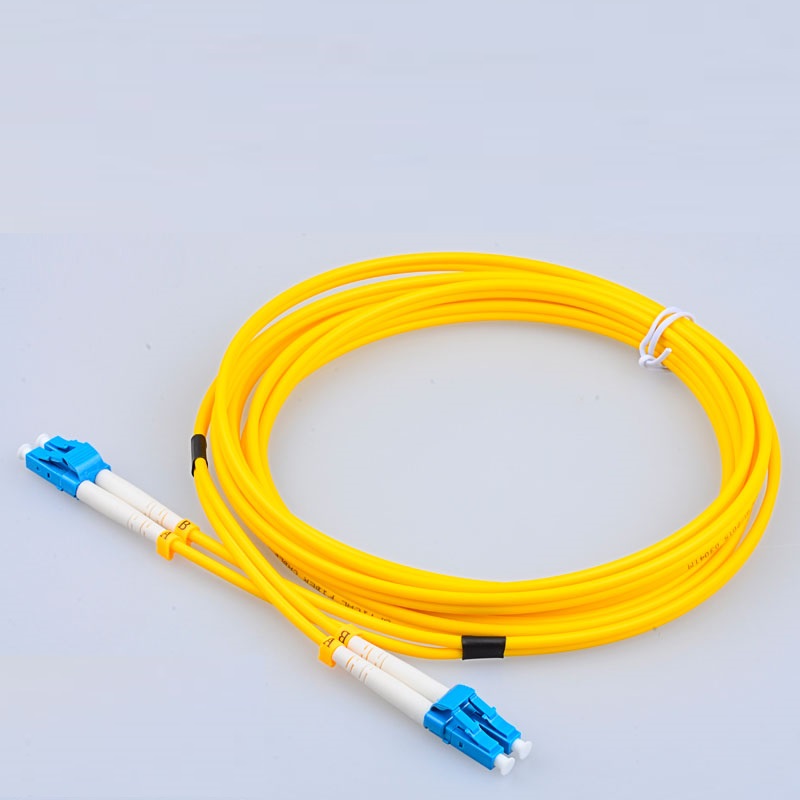

LC/ UPC–LC/ UPC-SM- DX-Φ3.0–PVC-2M
① ② ① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP
⑦ Cable Length: 1, 2, 3 meter or customized

The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

Connector Type	ST.LC SC.FC	Polish Type	UPC to UPC
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Fiber Grade	G.657.A1 (Compatible with G.652.D)	Minimum Bend Radius	10mm
Attenuation at 1310 nm	0.36 dB/km	Attenuation at 1550 nm	0.22 dB/km
Fiber Count	Duplex	Cable Diameter	2.0mm
Cable Jacket	PVC	Polarity	A(Tx) to B(Rx)
Operating Temperature	-20~80°C	Storage Temperature	-40~80°C
