Optical fiber tools

1.5mm Fiber Optic One Click SC FC ST Connector Cleaner Fiber Optic Cleaning Pen Optical Cleaner - copy

Fiber optic clean pen
SC FC
2.5mm
1.5mm
Product description: 2.5mm &1.5mm Fiber Optic One Click SC FC ST Connector Cleaner Fiber Optic Cleaning Pen Optical Cleaner
INQUIRY

2.5mm &1.5mm Fiber Optic One Click SC FC ST Connector Cleaner Fiber Optic Cleaning Pen Optical Cleaner

Model Number	2.5mm/1.25mm
Classification Color	white and blue
Application Fiber Optic Connector &Adapter	SC,FC,ST,LC/LC,MU
Dimensions(mm) (Guide Cap dimentions and prongs are not included)	W17.5xH17.5xL165 (Nozzle Extendability:L200)
Function/Handle type	One-Push
NO. of Cleanings	800+ times
Cleaning Method	Dry(Cleaning the Zirconia ferrule endface with cleaning cloth,with no chemical or solvent
ODC version available	"click" is heard

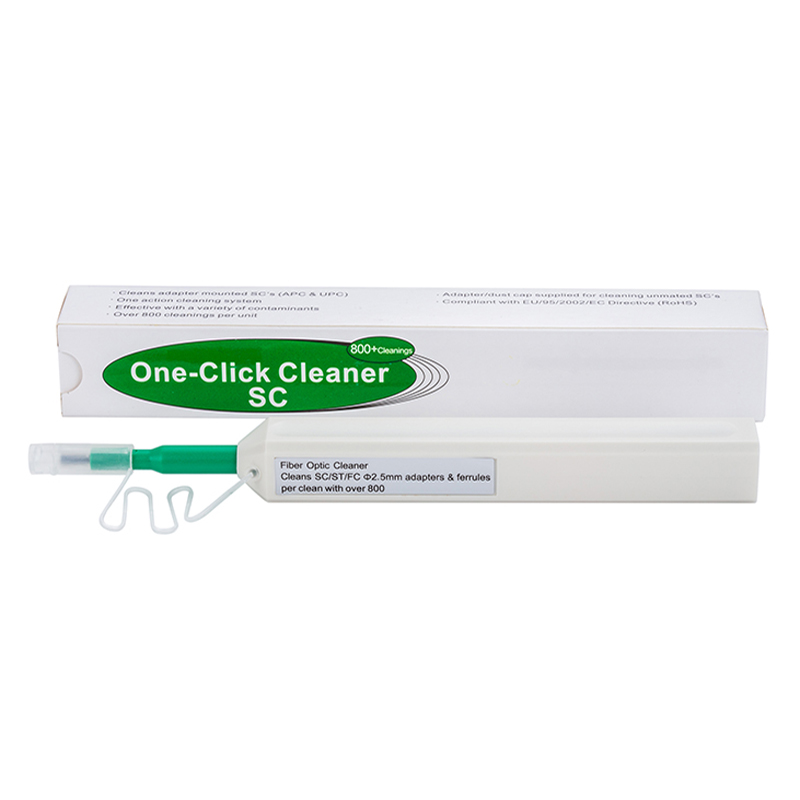

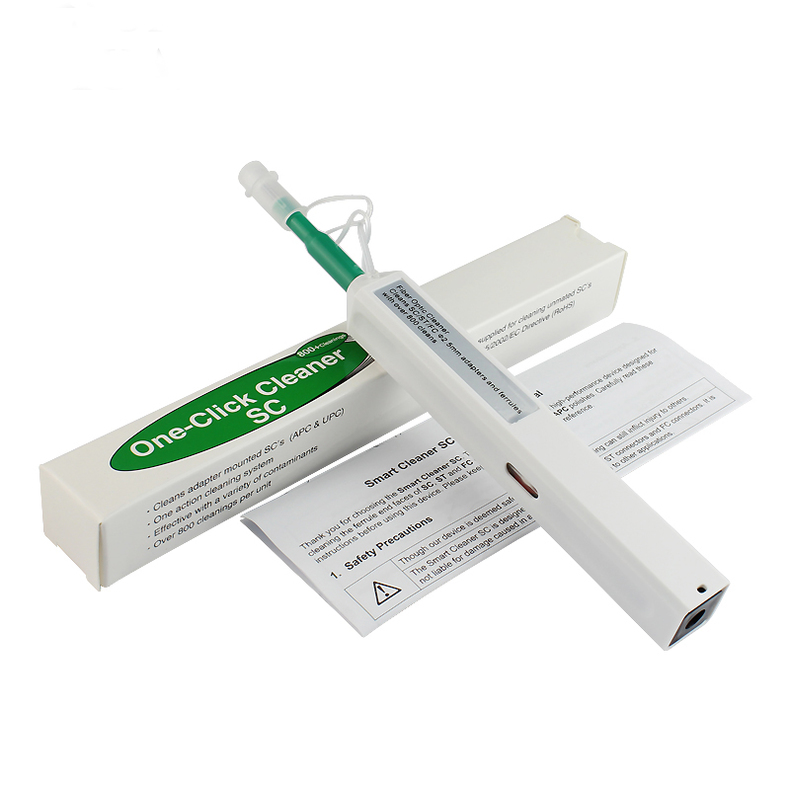

Fiber Optic One Click SC Cleaner

The One-Click Cleaner is an easy-to-use option for cleaning 2.5mm ferruled connectors in adapters. Simply insert the One-Click Cleaner into an adapter and push until an audible "click" is heard. The One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fiber end-face is effectively, but gently, cleaned. The One-Click Cleaner is a must-have for field technicians. Small enough to fit in a shirt pocket and a great addition to cleaning kits.

Competitive Advantage

Easy push operation use

Optical grade cleaning tape

Must have for field technicians

Rotating cleaning tip

Specification

Model Number

2.5mm/1.25mm

Classification Color

white and blue

Application Fiber Optic Connector &Adapter

SC,FC,ST,LC/LC,MU

Dimensions(mm)
(Guide Cap dimentions and prongs are not included)

W17.5xH17.5xL165
(Nozzle Extendability:L200)

Function/Handle type

One-Push

NO. of Cleanings

800+ times

Cleaning Method

Dry(Cleaning the Zirconia ferrule endface with cleaning cloth,with no chemical or solvent

ODC version available

"click" is heard
