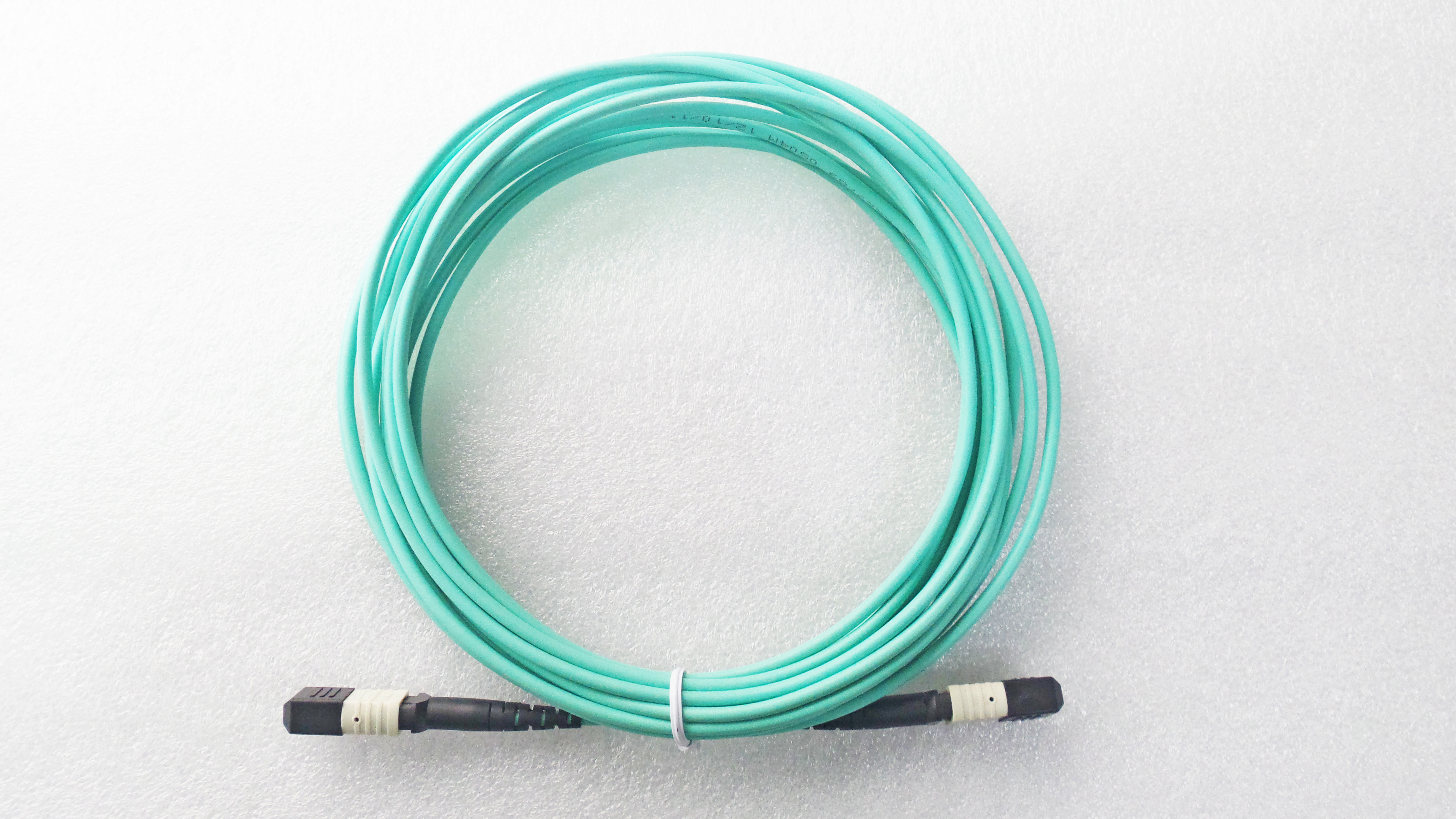

MTP/MPO patch cord 24-48 Fiber OM3 OM4

24-48 Fiber OM3 OM4 MTP/MPO patch cord

Desciption:

MTP patch cords are used to make the interconnections between the MTP cassettes or connections to active equipment with MPO/MTP interface. In cases where an MTP patch cord is connected (through an MTP coupler) to another MTP patch cord, one of the two MTP connectors must be male (equipped with pins).

Features:

• MTP/MPO trunk and fan-out cables available in 12/24 fiber connectors

  High precision guide pins

  Patented elliptical guide pin tip to minimize ferrule debris

  Singlemode & Multimode OM2 / OM3 / OM4

  12, 24, 36, 48, 72, 96, and 144 count fiber cable

  Color coded housings available to differentiate fiber type, polish type, and connector grade

  Attached pulling-eye to fit each particular environment

Applications:

1. Telecommunication Networks
2. Computer networks
3. CATV networks
4. FTTx Termination
5. Gigabit Ethernet

Pre-erminated MPO Technology-Polarity

	A Straight-Through MPO Trunk Cable: Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x .A to A Duplex Patch Cable.
	B Cross MPO Trunk Cable: Key-Up to Key-Up Adapters and 2 x .A to A Duplex Patch Cable.
	C Cross Pair MPO Trunk Cable: Key-Up to Key-Down Adapters and 2 x .A to A Duplex Patch Cable.

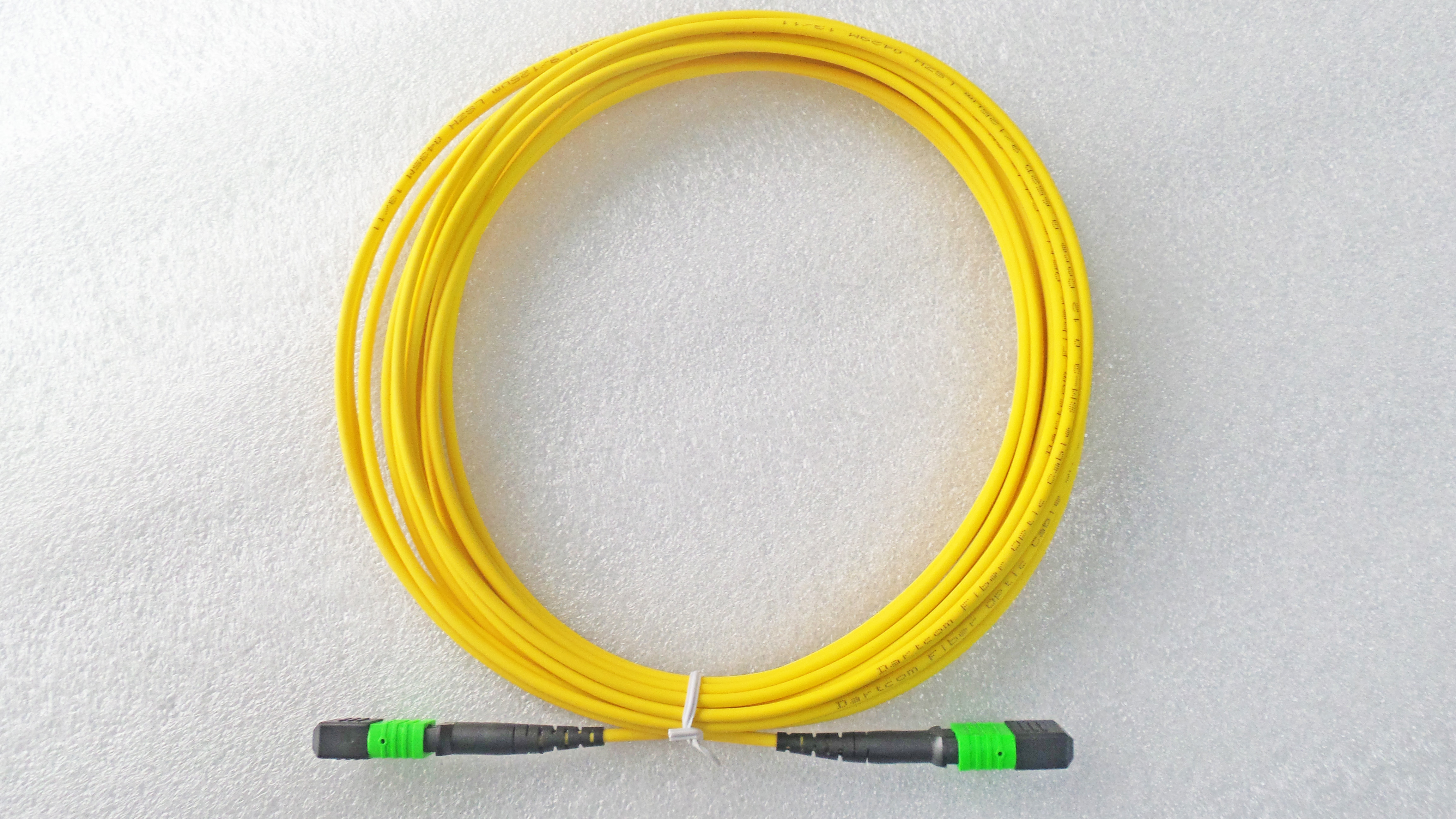

Notes: Your equipment mode and QSFP type has impact of the polarity of the MPO/MTP Trunk Cable. The default color of the Single-mode MPO connector is green.

Specification:

Fiber Connector

Fiber Cable

Packing:

PE bag with stick label (we could add customer's logo in the label.)

LC stands for Lucent Connector. It is a small form-factor fiber optic connector，half the size of the SC.

SC stands for Subscriber Connector- a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and is keyed.

ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.

FC stands for Fixed Connection. It is fixed by way of a threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.

Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specification:
